Wonder Audio Labs was founded by Mr. William Tam who has over 40 years of experience in the audio industry. He worked for a number of top end audio distributors in Hong Kong and has tons of knowledge regarding high end audio, especially analog.

William had a goal of making a dream phono preamplifier with all the features which one could think of. He spent years talking to brained designers and eventually introduced the first product named P1 in 2022 with technical partner Mr. Tom Tang.

P1 is proud to have a patented technology named SPBA (Single Pole Balanced Amplifier). This
technology was originally designed for microphone amplification. It is suitable for extremely low signal transfer. The benefit is very low distortion, fast response and very low noise.

Most tube phono preamplifiers on the market have single ended input and single ended output. But the SPBA has single ended input and balanced output.

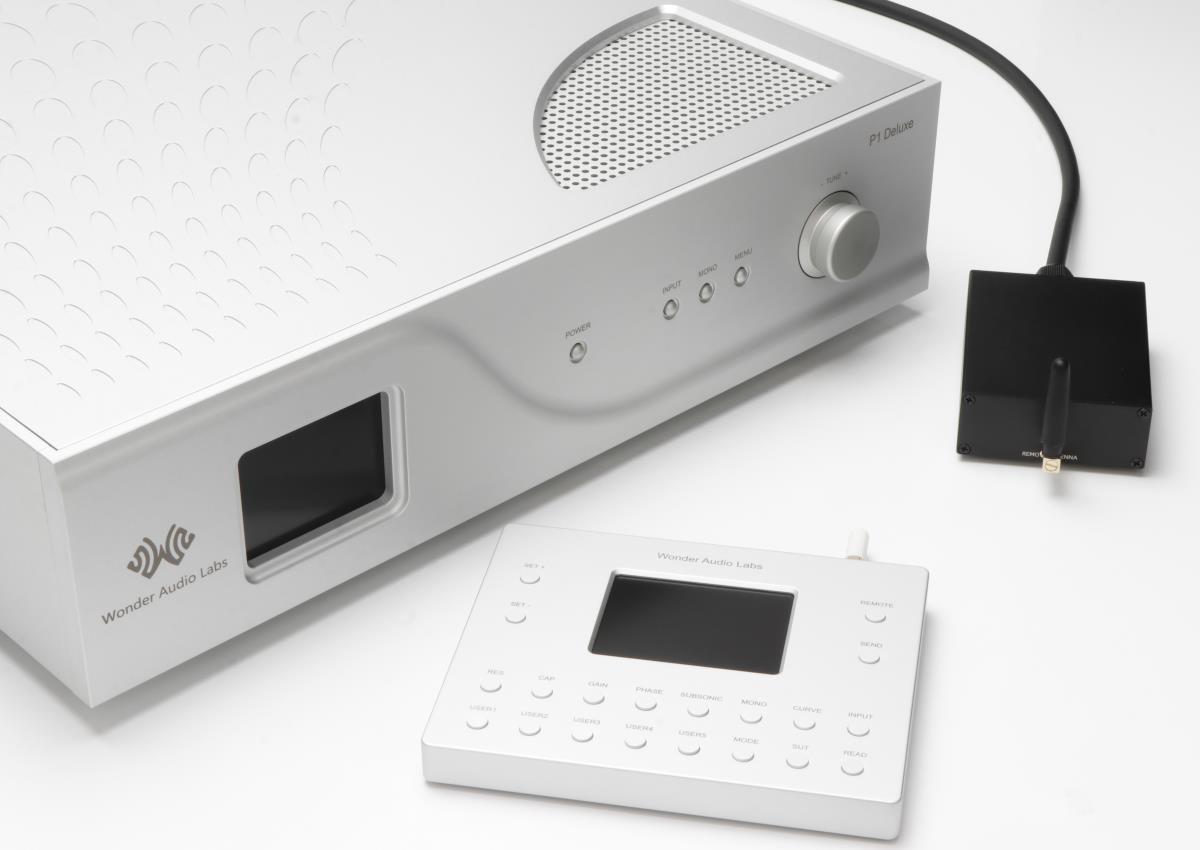

P1 Deluxe Final

P1 Deluxe Final


Outstanding Features:

  • Advanced vacuum tube phono stage amplifier
  • Supports moving coils (MC) and moving magnet (MM) cartridges
  • Matches MC cartridges with loading impedance up to 1000 levels from 10Ω to 1020Ω
  • Adopts German Mondorf best capacitors – Silver Gold Oil series
  • Supports 100 composite EQ curves, 2 RIAA modules (passive and active)

Specifications:

Inputs: 6 inputs, 3 x RCA, 3 x XLR, All support MM & MC cartridge
Outputs: 1 x RCA, 1 x XLR
Frequency response: 20 Hz — 20k Hz
Total Harmonic Distortion: < 0.02% max @1kHz
Signal to noise ratio: 100 dB
Dynamic range: 110 dB
Input impedance: 1000+ options: 10Ω — 1020Ω for MC, 47kΩ for MM
Input capacitance: 32 options: 0pF – 1800pF
Curves: Active RIAA, Passive RIAA, 100 OLD EQ curve
Gain: 40dB,42dB,45dB,50dB, for MM / 55dB,60dB, 65dB,70dB for MC
Vacuum tube: 4 x ECC82 / 12AU7
Power supply: AC 110V / 220V, 50 — 60Hz
Power consumption: 40 Watts
Weight: > 12.5 kg – net
Dimensions: 435mm W | 100mm H | 400mm D

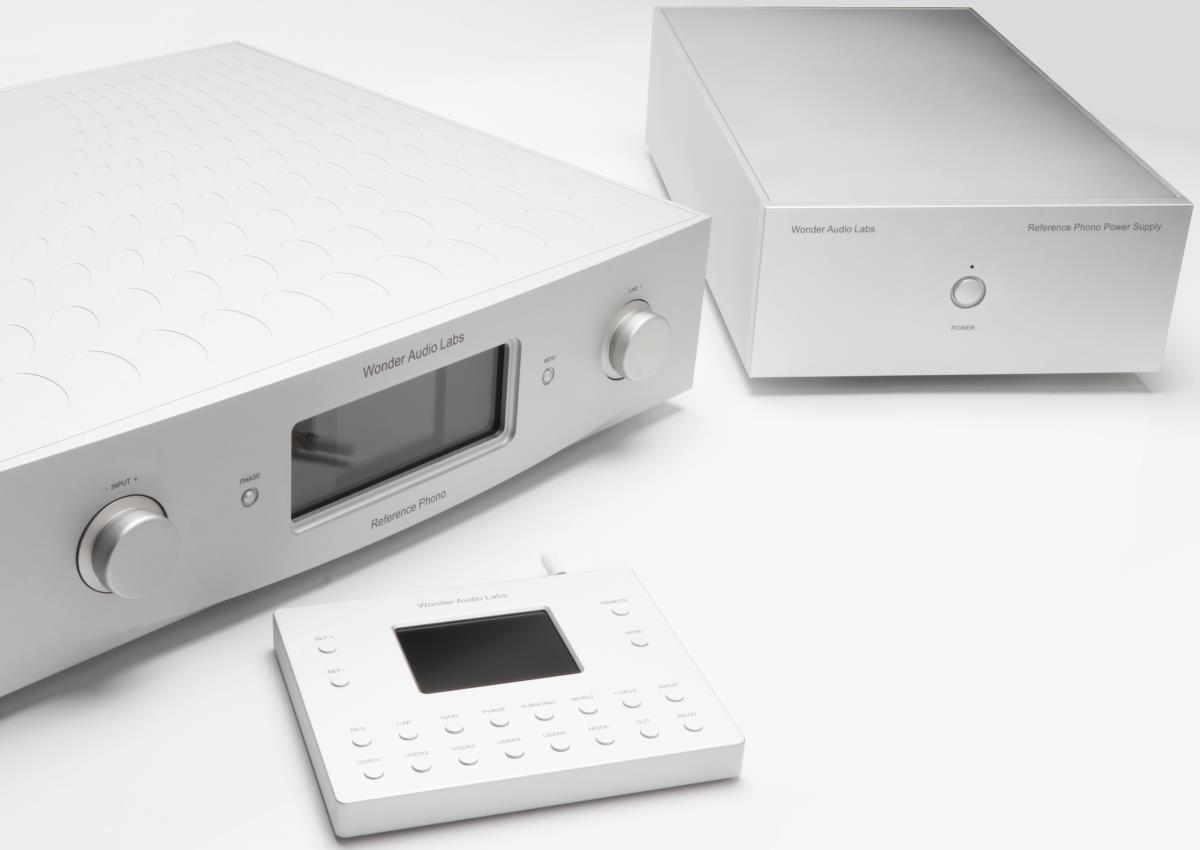

Reference Phono

Reference Phono


Outstanding Features:

  • Advanced reference-grade vacuum tube phono stage amplifier
  • Supports moving coils (MC) and moving magnet (MM) cartridges
  • MC cartridge impedance is adjusted by one ohm increment up to 2000 levels, from 10 Ω to 2000 Ω
  • Using 4 high-end Germany Mundorf Mcap SUPREME EVO Silver Gold Oil capacitors
  • Comes standard with Built-in very High-end Lundahl LL1933Ag MC step-up transformer
  • 2.4G communication remote control, with global parameters adjusted simultaneously
  • Supports 100 composite EQ curves, 2 RIAA modules (passive and active)

Specifications:

Inputs: 6 inputs, 3 x RCA, 3 x XLR, All support MM & MC cartridge
Outputs: 1 x RCA, 1 x XLR
Frequency response: 20 Hz — 20k Hz
Total Harmonic Distortion: < 0.02% max @1kHz
Signal to noise ratio: 100 dB
Dynamic range: 110 dB
Input impedance: 2000+ options: 10Ω — 2000Ω for MC, 47kΩ for MM
Input capacitance: 32 options: 0pF – 1800pF
Curves: Active RIAA, Passive RIAA, 100 OLD EQ curve
Gain: 40dB,42dB,44dB,46dB, 48dB,50dB, for MM / 55dB,60dB, 62dB, 64dB, 66dB,70dB for MC
Vacuum tube: 4 x ECC82 / 12AU7
Power supply: AC 110V / 220V, 50 — 60Hz
Power consumption: 40 Watts
Weight: > 12.5 kg – net
Dimensions: 435mm W | 100mm H | 400mm D



Reviews

Wonder Audio Labs P1 Deluxe review done by Mr. Douglas Seth Brown of Positive Feedback
