Reference 3.1 (KT88) Tube Integrated Amplifier

Audio Space Reference 3.1 (KT88) Tube Integrated Amplifier

Outstanding Features

  • Rugged stainless steel chassis
  • High quality EI transformers and components
  • Switching between ultra-linear and triode
  • Switching between high and low negative feedback
  • Tube moving magnet phono stage
  • Innovative tube circuitry with choke coil

Specifications

  • Output Power: 2 x 26W (Triode – Class AB Push-Pull)
  • 2 x 50W (Ultralinear – Class AB Push-Pull)
  • Output Impedance: 4, 8 & 16 ohm
  • Input Impedance: 56 k ohm Line Input)
  • 47 k ohm (Phono Input)
  • Input: Singled ended RCA x 3
  • Vacuum tubes: KT88 x 4
  • 6N8P (6SN7) x 2
  • 12AX7 (ECC83) x 4
  • Dimensions (W x H x D): 405 x 215 x 475 mm
  • Net Weight: 28.7 kg

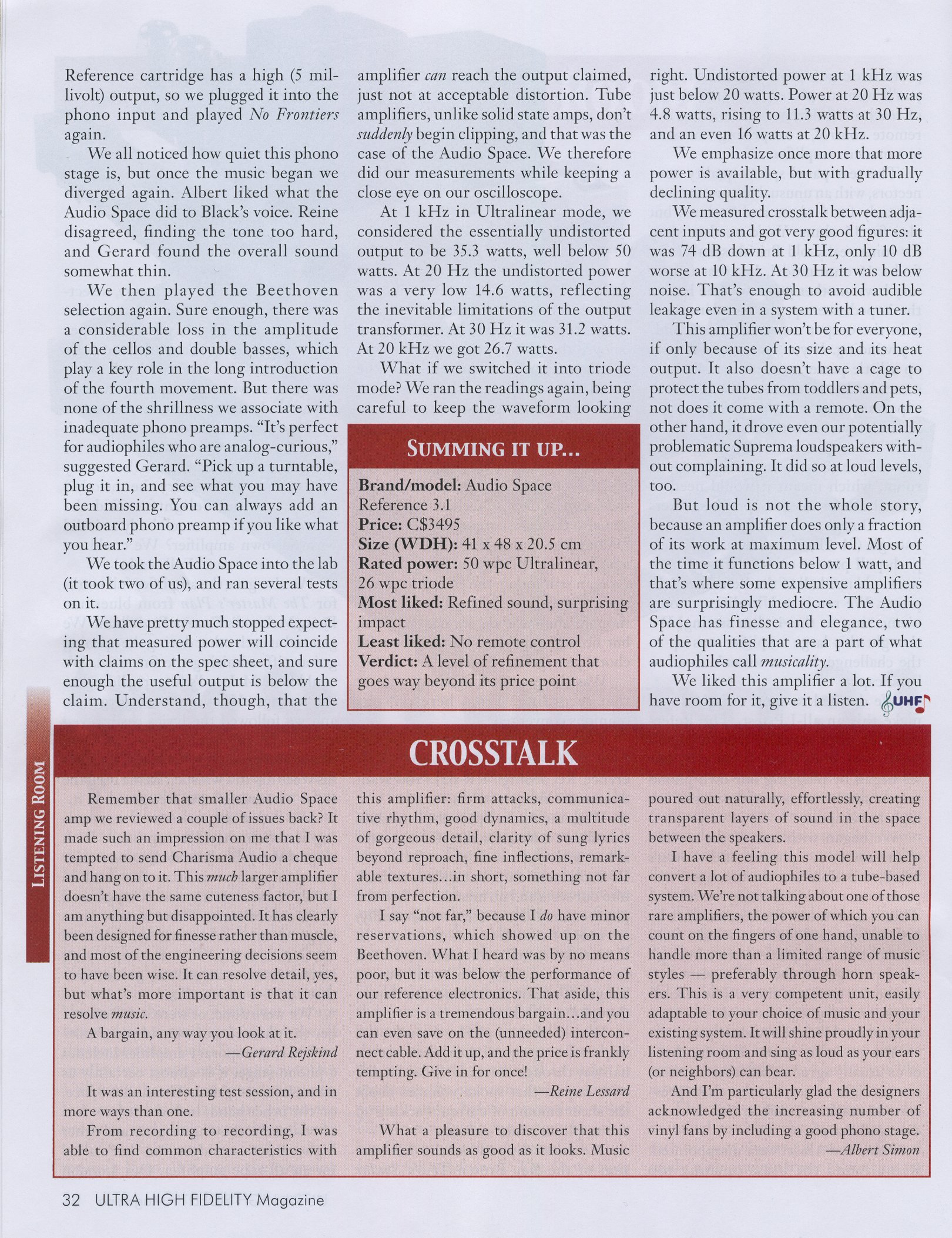

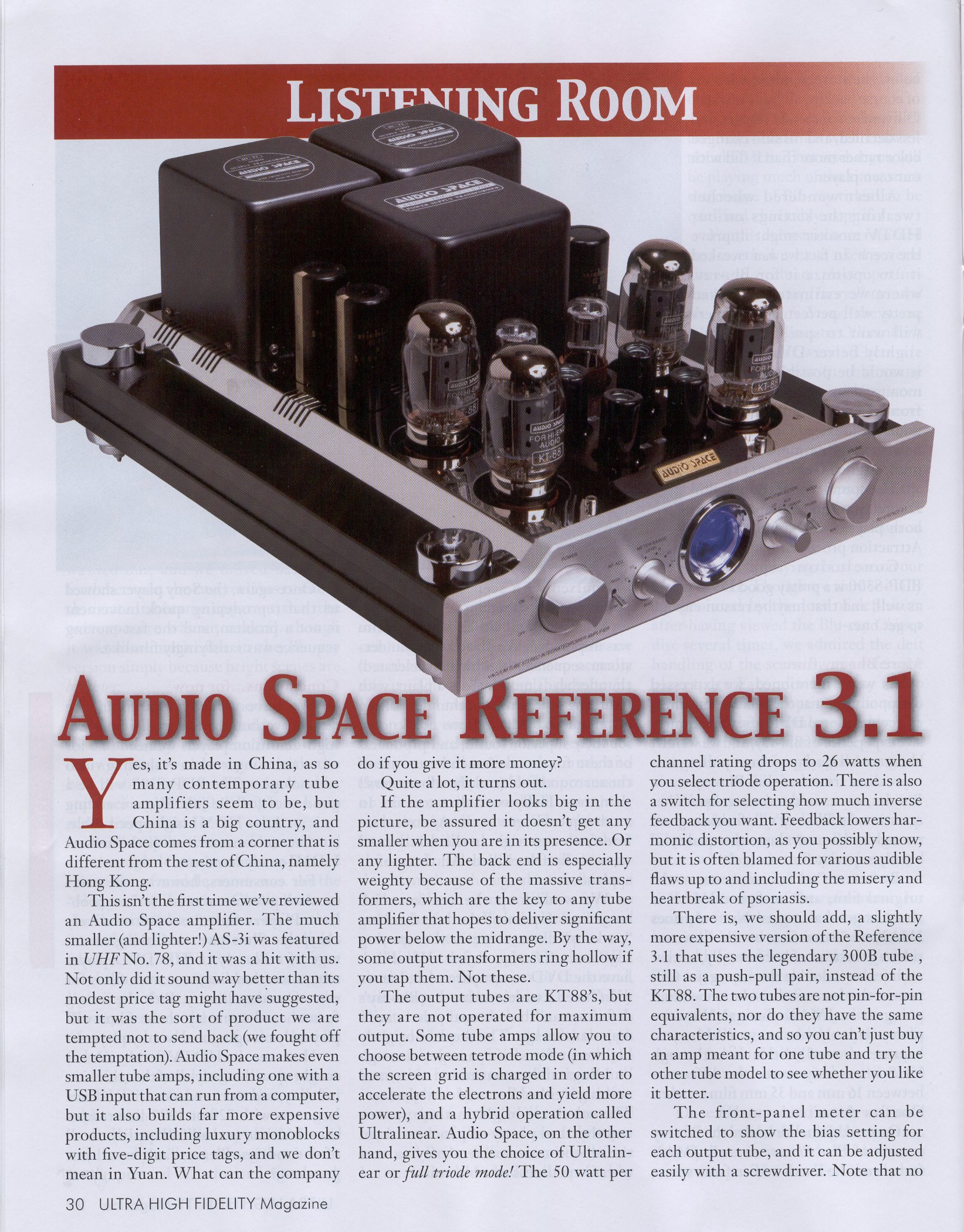

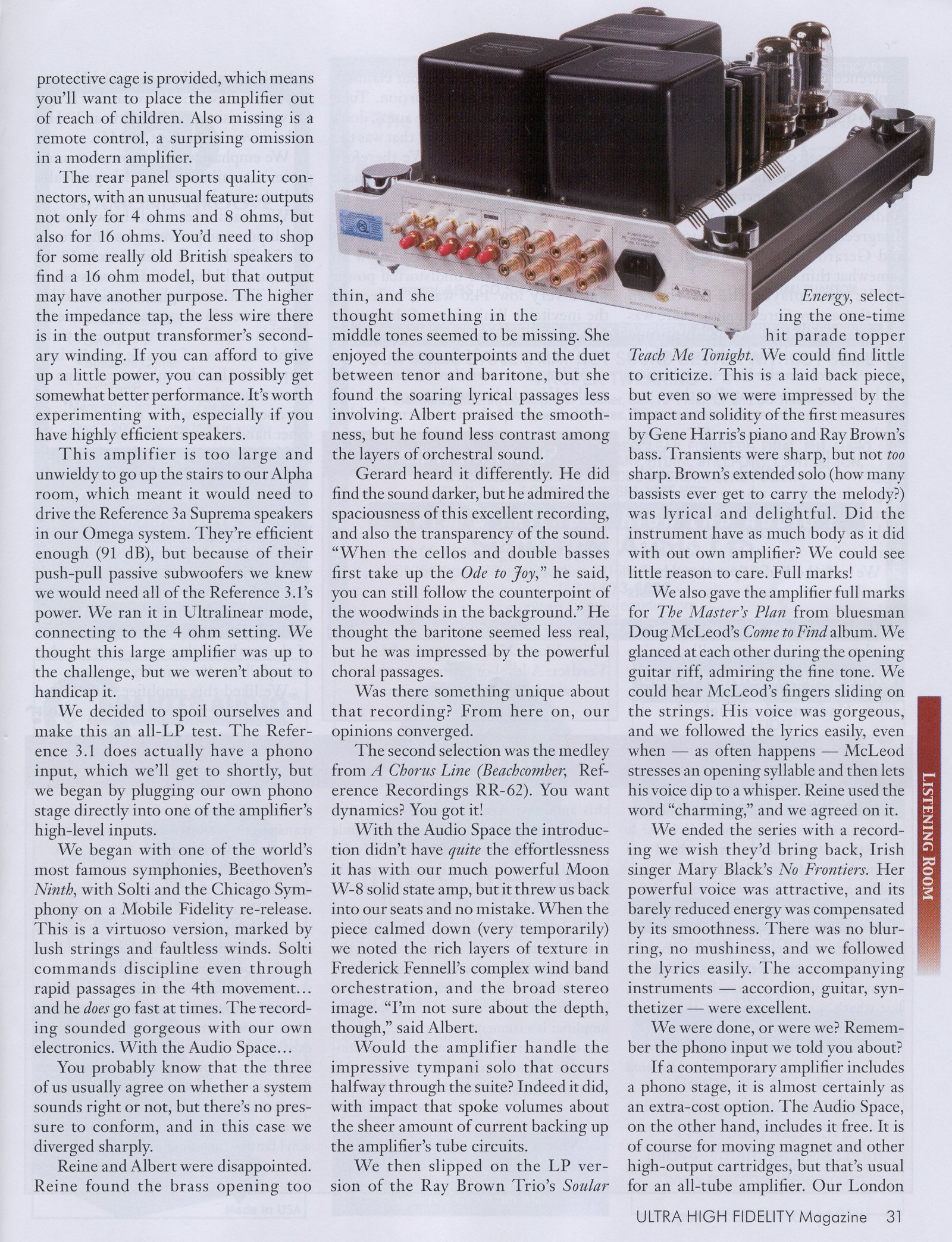

Reviews
